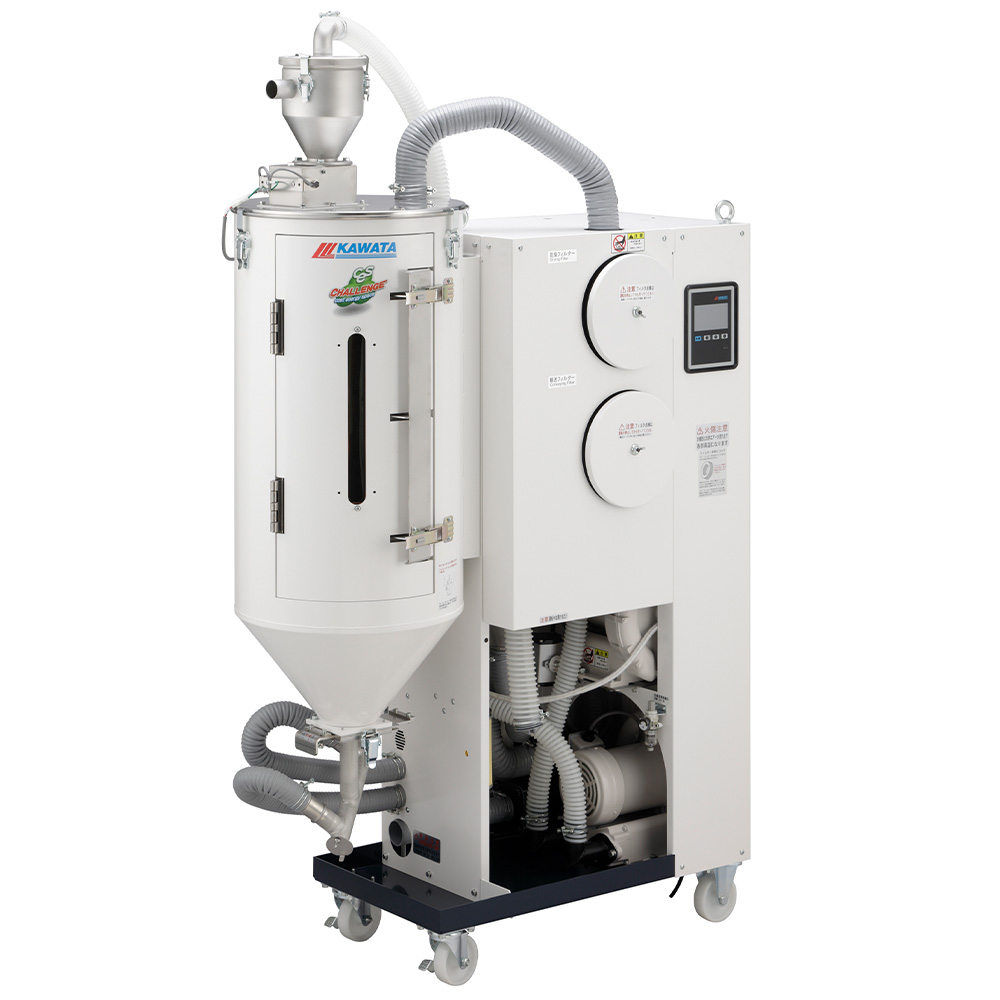

乾燥機 脱湿乾燥機(輸送機能一体型汎用タイプ)
チャレンジャー コンパクト
DRCシリーズ(30Z, 60Z)
DRC-30Z/DRC-60Z
Please select a symptom
輸送の症状
モータ過負荷
異常表示有「モニタ4 モータ過負荷」
現象:
輸送ブロワ過負荷によりサーマルがトリップした場合、装置は停止します
原因と対策:
①サーマルの誤設定
→再設定
②モータの異常
→点検、交換
③電磁開閉器の異常
→点検、交換
④フィルタ目詰まり
→フィルタ掃除、交換
⑤電源、電圧異常
→規定電圧にする
輸送サイクル1
異常表示有「モニタ5 輸送サイクル1」
現象:
輸送はするが完了しない場合、そのまま運転します
原因と対策:
①材料切れ
→材料確認
②レベルスイッチ不良
→レベルスイッチ調整
③輸送エアーバルブ不良
→バルブ点検、交換
④輸送エアー量不良
→輸送配管点検
フィルタ点検、交換
⑤異常待カウンタが短い
→カウンタ再設定
輸送サイクル2
異常表示有「モニタ6 輸送サイクル2」
現象:
輸送はするが完了しない場合、そのまま運転します
原因と対策:
①材料切れ
→材料確認
②レベルスイッチ不良
→レベルスイッチ調整
③輸送エアーバルブ不良
→バルブ点検、交換
④輸送エアー量不良
→輸送配管点検
フィルタ点検、交換
⑤異常待カウンタが短い
→カウンタ再設定
輸送サイクル3
異常表示有「モニタ7 輸送サイクル3」
現象:
輸送はするが完了しない場合、そのまま運転します
原因と対策:
①材料切れ
→材料確認
②レベルスイッチ不良
→レベルスイッチ調整
③輸送エアーバルブ不良
→バルブ点検、交換
④輸送エアー量不良
→輸送配管点検
フィルタ点検、交換
⑤異常待カウンタが短い
→カウンタ再設定
切替弁が作動しない
現象:
ブロワは回転するが輸送が出来ない
原因と処置:
①エアー供給異常
→エアーを正しく供給する
②バルブ面へのゴミなどのかみ込み
→交換
③接続不良
→締付調整
④電磁弁動作不良
→交換
輸送不良
現象:
運転はするが能力が出ない。
原因と対策:
①空気漏れ 上蓋とタンク間のパッキンが一致していない
→再取付またはパッキン交換
②排出ダンパの取付不良
→取付位置調整
③排出ダンパの不良
→交換
④配管の接続不良
→締付調整
⑤フィルタの目詰まり
→集塵タンク内のフィルタ清掃、交換
ローダホッパ金網の清掃
⑥配管内の閉塞 配管内に異物が詰まる
→配管内の掃除
⑦二次エアーが少なすぎ、材料との混合濃度が濃すぎる
→二次エアー弁の再調整→開に近づける
フィルタの掃除、交換
⑧設定時間が適切ではない
→輸送時間を短くとる。排出時間を長くとる。
⑨排出バルブの不良による排出不良
→点検。
⑩乾燥ホッパの内圧が高すぎることによる排出不良
→乾燥機のリークチェック及び点検
⑪二次エアーの調整不良、材料との混合比が薄すぎる。
→二次エアーの再調整→二次エアー調整用
ダンパを閉に近づける
⑫タイマーの設定不良
→二次エアーの再調整→二次エアー調整用
ダンパを閉に近づける
乾燥の症状
過熱
異常表示有「モニタ1 過熱」
現象:
ヒータ過熱により、ヒータボックス内部が異常に高温となった場合、ヒータ用ブレーカを遮断し装置は停止します
※過熱異常のみ復帰させる動作が異なります。
取扱説明書内6.2過熱異常の復帰を参照してください
原因と対策:
①フィルタ目詰まり
→フィルタ掃除、交換
②過熱温度の誤設定
→再設定
③ホースの脱落、閉塞
→ホースの確認、交換
④乾燥ブロワの停止
→点検、交換
⑤過熱用バイメタルの異常
→点検、交換
⑥制御パネルの異常
→点検、交換
⑦SSCの不良
→点検、交換
⑧停電
→再起動
※「過熱」異常が発生した際は、必ずバイメタルを交換してください。
乾燥温度
異常表示有「モニタ2 乾燥温度」
現象:
乾燥温度が[設定温度]+[上限偏差]よりも高くなった場合、ヒータ用ブレーカを遮断し、装置は冷却停止します
乾燥温度が一度設定温度に達してから[設定温度]-[下限偏差]よりも低くなった場合
そのまま運転します
原因と対策:
①乾燥用サーモカップルの異常
→点検、交換
②乾燥用サーモカップルの断線
→点検、交換
③SSCの不良
→点検、交換
④PID設定不良
→再設定
⑤ヒータ断線
→交換
※上限・下限偏差の設定値は取扱説明書内パラメータ項目リストを参照願います。
再生温度
異常表示有「モニタ3 再生温度」
現象:
再生温度が[設定温度]+[上限偏差]よりも高くなった場合、ヒータ用ブレーカを遮断し、装置は冷却停止します。
再生温度が一度設定温度に達してから[設定温度]-[下限偏差]よりも低くなった場合
そのまま運転します
再生冷却が[再生冷却異常待ち時間]を超えて継続されている場合、そのまま運転します
原因と対策:
①再生用サーモカップルの異常
→点検、交換
②再生用サーモカップルの断線
→点検、交換
③SSCの不良
→点検、交換
④PID設定不良
→再設定
⑤ヒータ断線
→交換
※上限・下限偏差の設定値は取扱説明書内パラメータ項目リストを参照願います。
モータ過負荷
異常表示有「モニタ4 モータ過負荷」
現象:
ブロワ過負荷によりサーマルがトリップした場合、装置は停止します
原因と対策:
①サーマルの誤設定
→再設定
②モータの異常
→点検、交換
③電磁開閉器の異常
→点検、交換
④フィルタ目詰まり
→フィルタ掃除、交換
⑤電源、電圧異常
→規定電圧にする
乾燥不良
現象:
運転はしているが乾燥不良のようだ
原因と対策:
①風量低下、温度低下、・露点低下、乾燥条件、材料変更、その他
→※連続運転中、急に乾燥不良となった場合は、フィルタメンテナンス及びブロワ、ヒータのチェックを行ってください。
それでも改善されない場合は弊社までご連絡願います。
その他の症状
運転が出来ない(電源ランプが点灯しない)
現象:
電源ランプが点灯しない
原因と対策:
①ブレーカが「切」になっている
→盤内のブレーカを「入」にする
②基板不良
→基板交換
現象:
電源ランプが点灯するが運転、停止キーを押してもブロワが回転しない
原因と対策:
①各ターミナルの締め付け不良
→増し締め
②始動予約運転が入っている
→始動予約運転を切る
③過負荷
→原因を調査して、サーマルリレーを
リセットする
④電磁開閉器不良
→電磁開閉器交換
⑤基板不良
→基板交換
運転が出来ない(電源ランプは点灯している)
現象:
電源ランプは点灯するが運転、停止キーを押してもブロワが回転しない
原因と対策:
①各ターミナルの締め付け不良
→増し締め
②始動予約運転が入っている
→始動予約運転を切る
③過負荷
→原因を調査して、サーマルリレーを
リセットする
④電磁開閉器不良
→電磁開閉器交換
⑤基板不良
→基板交換
Others
原因と対策:
①CPU破損
→基板の交換
②制御盤周囲の温度が高い
→換気のチェック
③電気機器の動作不良
→負荷の状態及び締付部のチェック
④レベルスイッチの配線忘れ
→コネクタを接続
