Silo tank Raw material tank H tank H series
Available in 3 types to choose according to usage
- Material: Grained part SUS
- Capacity: 50 L to 1000 L
- Depending on the number of suction ports and caliber options
Overview
H type
Normal type
HA type
Suction cut type collection mounting type
HB type
Box type collection box mounting type
specification
Standard product
| Model | Capacity (L) | Nozzle diameter (mm) | Outer dimension W × D × H (mm) |
|---|---|---|---|
| H-50 | 50 | φ 38 (op. φ 48.6) | 515×515×657 |
| H-100 | 100 | 615×615×757 | |
| H-200 | 200 | 615×615×907 | |
| H-400 | 400 | 815×815×1052 | |
| H-600 | 600 | 1015×1015×1099 | |
| H-1000 | 1000 | 1165×1165×1304 |
For suction cut-off collection
| Model | Capacity (L) | Nozzle diameter (mm) | Outer dimension W × D × H (mm) |
|---|---|---|---|
| H-50A | 50 | (OPTION) Suction cut type collection box Select φ38 or φ48.6 |
515×515×767 |

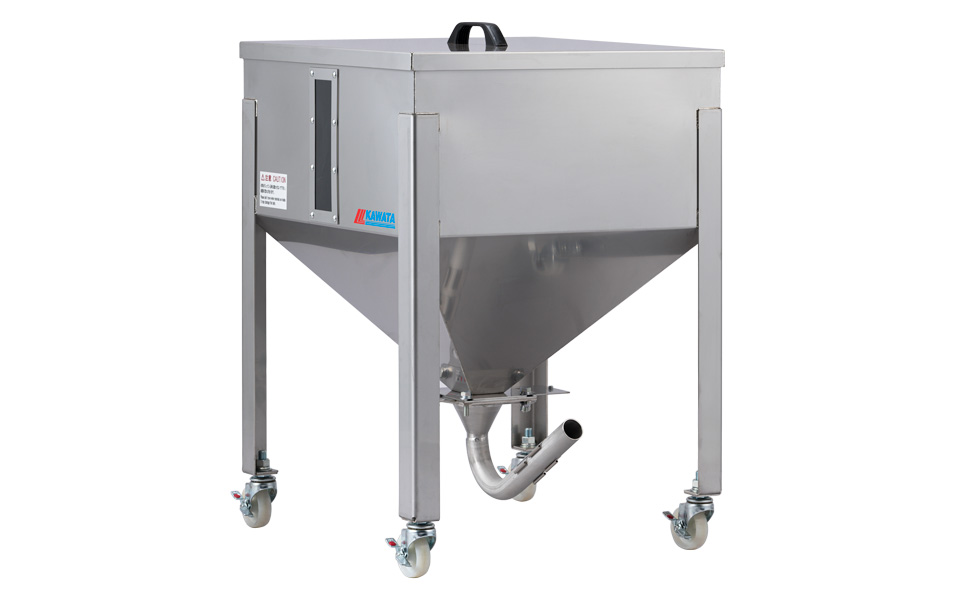

| H-100A | 100 | 615×615×852 | |
| H-200A | 200 | 615×615×1002 | |
| H-400A | 400 | 815×815×1157 | |
| H-600A | 600 | 1015×1015×1184 | |
| H-1000A | 1000 | 1165×1165×1379 |
For box type collection box
| Model | Capacity (L) | Nozzle diameter (mm) | Outer dimension W × D × H (mm) |
|---|---|---|---|
| H-50B | 50 | (OPTION) Box Collection Box Select φ38 or φ48.6 |
515×515×807 |
| H-100B | 100 | 615×615×907 | |
| H-200B | 200 | 615×615×1057 | |
| H-400B | 400 | 815×815×1202 | |
| H-600B | 600 | 1015×1015×1249 | |
| H-1000B | 1000 | 1165×1165×1454 |
