Pellet Conveying [autoloader] VVL/AVL/AAL series <Two-way Conveying type>
Pellet Conveying [autoloader] VVL/AVL/AAL series <Two-way Conveying type>
Conveying 2-way suction Conveying Machine Twin loader VVL/AVL/AAL series <Two-way Conveying type>
Conveying to two locations with one blower unit
- VL · AL hopper We can freely select two from various kinds according to needs
- Space saving considering installation location, simplification of cleaning and maintenance
- Easy operation with touch panel type
Overview

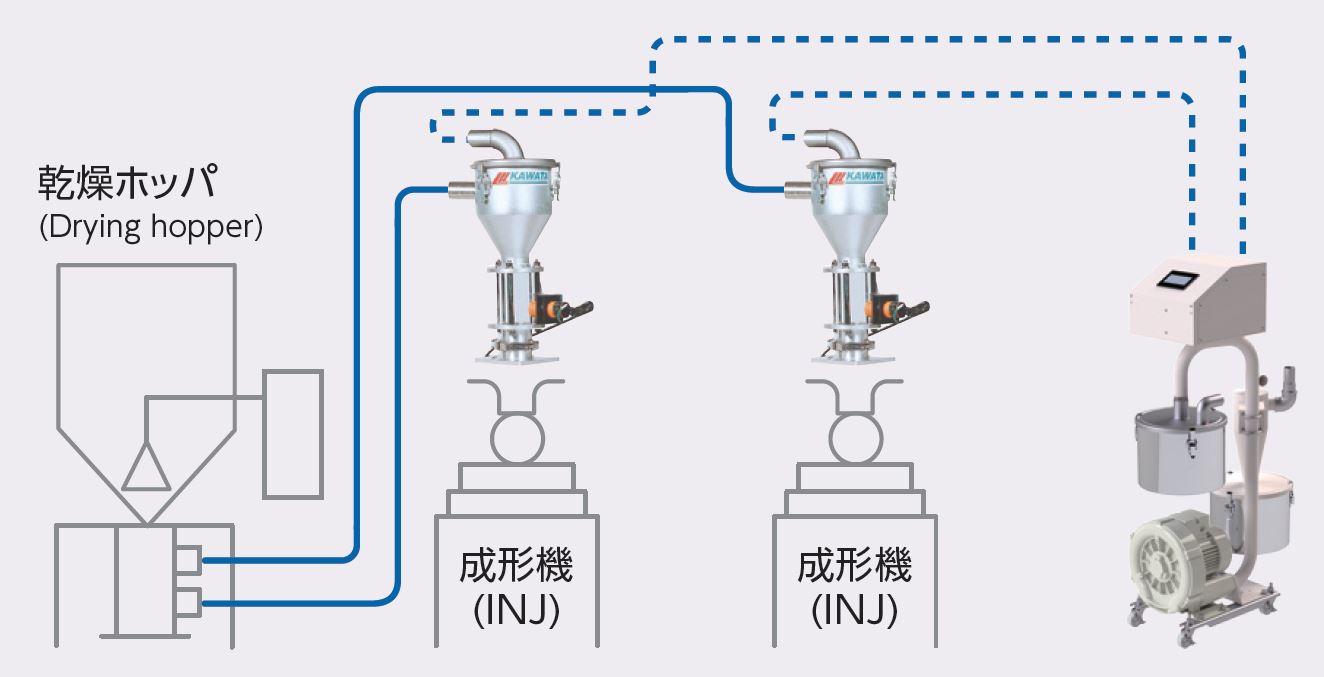

VVL type
VL series (directly connected type of molding machine) Aggregate functions of two units into one unit

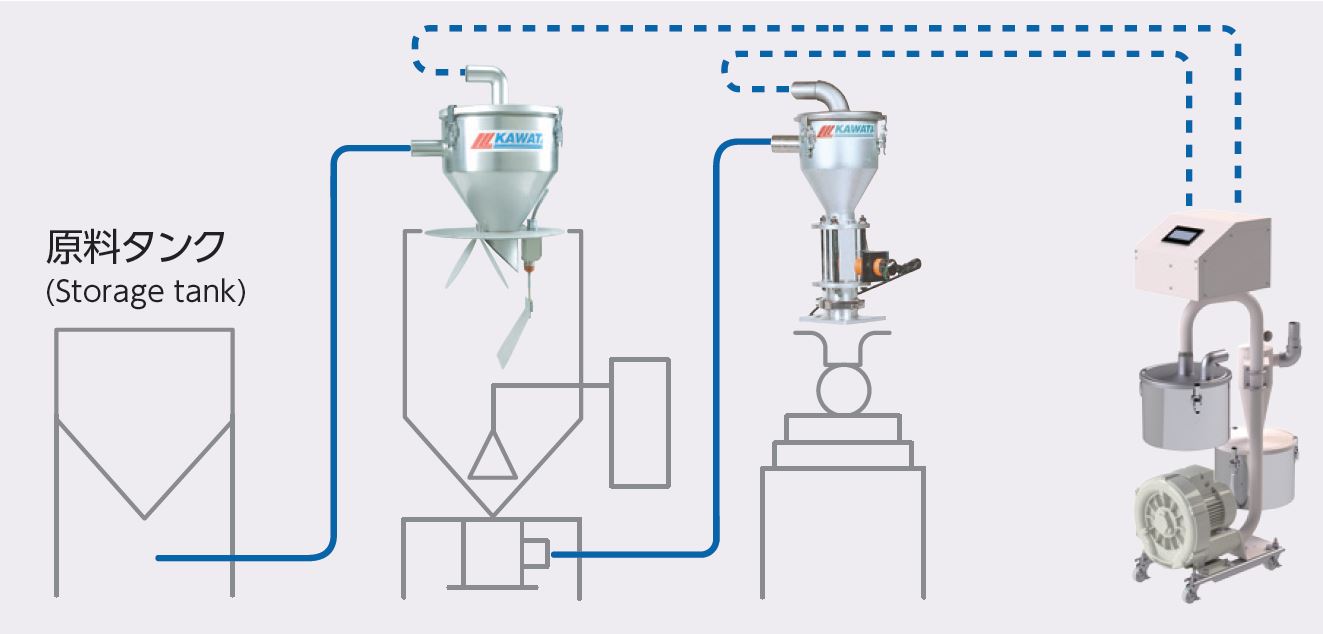

AVL type
Aggregate functions of two units, one for AL series (versatile type) and one for VL series (direct molding machine)

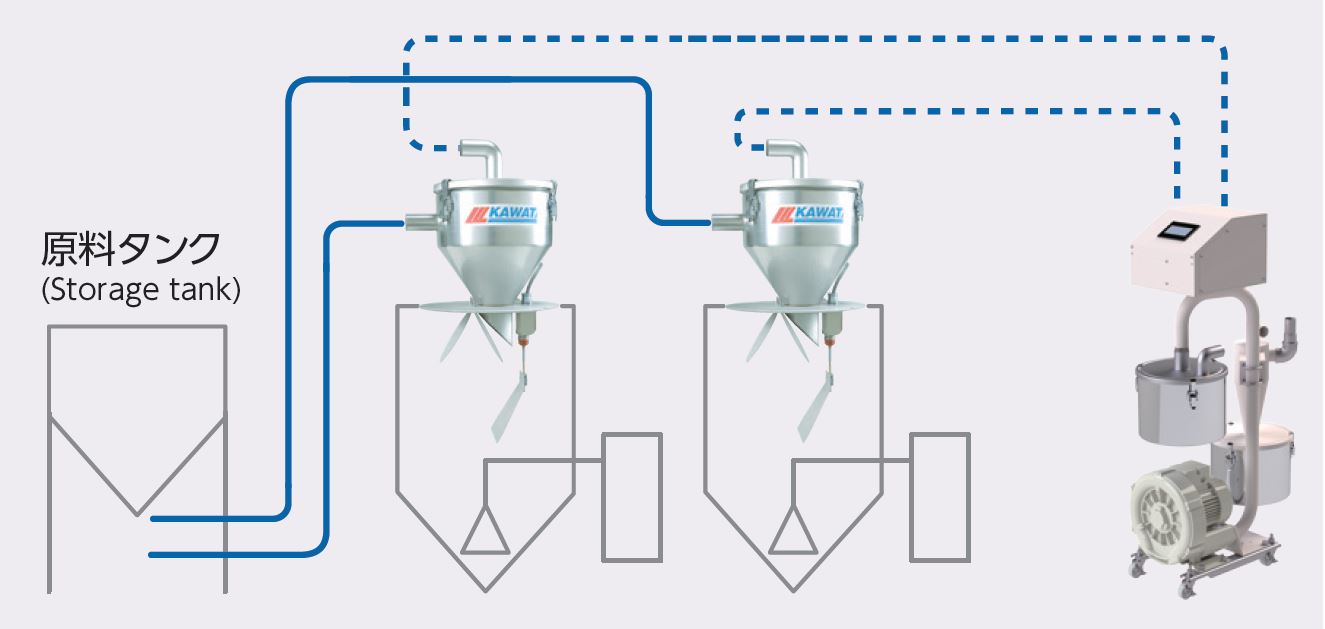

AAL type
AAL type: AL series (multipurpose correspondence type) Consolidate functions for two cars into one (not a direct molding hopper for molding machine)
Option Cyclone with dust collecting tank
Reduces the filter cleaning frequency with powdery material. (option)
Option bag filter
This is a wide area cloth filter. Suitable for Conveying powdery materials and grinding materials. (option)
Dimensional drawing
specification
| Model | Hopper type (capacity) (L) | Blower capacity (KW) (50/60 Hz) |
|---|---|---|
| VVL-0208a | VL-02-3 (2.5 L) × 2 Equation | 0.55/0.85 |
| VVL-0219a | 1.3/1.9 | |
| AVL-07 / 0208a | AL - 07 - 3 (7 L) × 1 formula + VL-02-3 (2.5 L) × 1 Equation |
0.55/0.85 |
| <AVL-07 / 0208Ba> | ||
| AVL-07 / 0219a | 1.3/1.9 | |
| <AVL - 0219 Ba> | ||
| AVL-07 / 0708a | AL - 07 - 3 (7 L) × 1 formula + VL-07-3 (7 L) × 1 formula |
0.55/0.85 |
| <AVL-07/0708 Ba> | ||
| AVL-07 / 0719a | 1.3/1.9 | |
| <AVL-07/0719 Ba> | ||
| AAL-0708a | AL - 07 - 3 (7 L) × 2 formula | 0.55/0.85 |
| <AAL-0708 Ba> | ||
| AAL-0719a | 1.3/1.9 | |
| <AAL-0719 Ba> |
※ B with bag filter (VVL-0208a, VVL-0219a is not compatible with bag filter)
